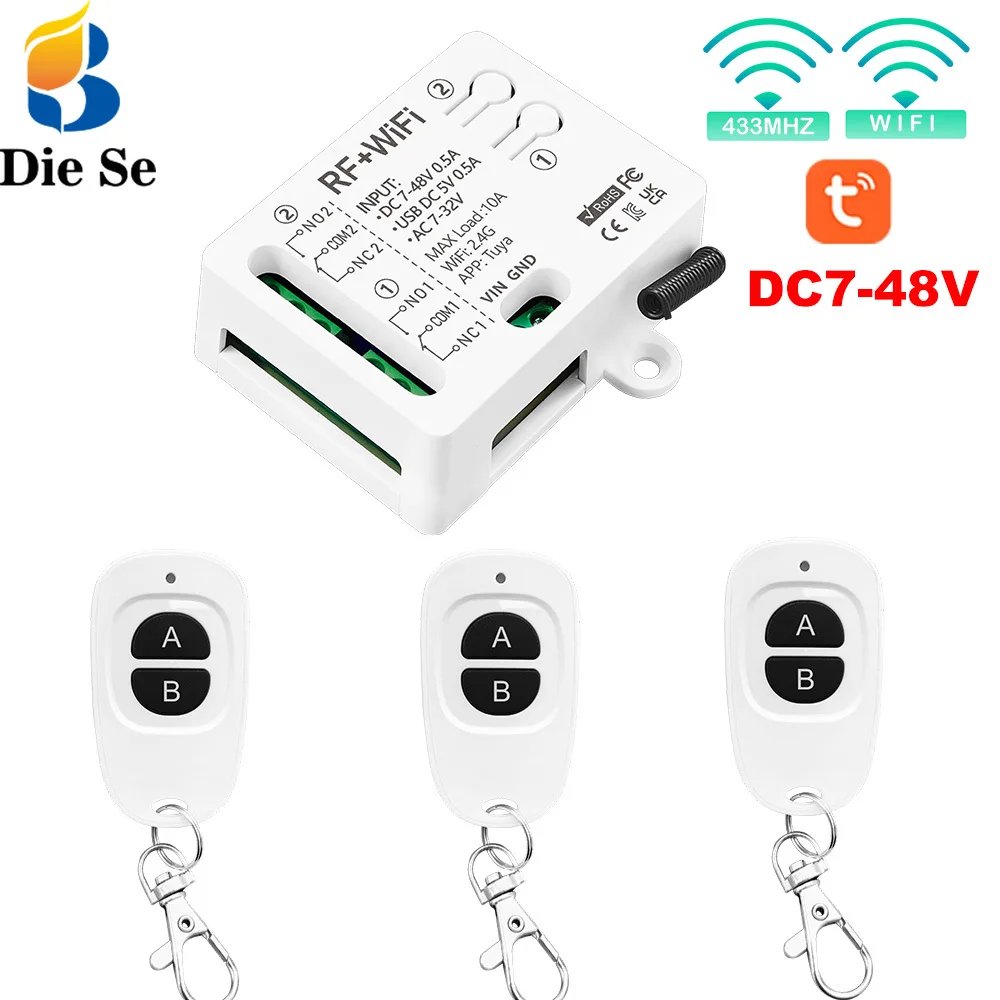

Tuya WIFI Wireless 433mhz Universal Gate Remote Control Switch DC 5V 48V 2Ch 10A Dry Relay Receiver Remote for Garage Door Led
₦17,341 – ₦29,245Price range: ₦17,341 through ₦29,245
Guaranteed Safe Checkout
Features & Compatibility
Tuya WIFI Wireless 433mhz Universal Gate Remote Control Switch DC 5V 48V 2Ch 10A Dry Relay Receiver Remote for Garage Door Led
Features:
1:Dry contact Relay receiver:
The input terminal of the receiver is separated from the voltage of the relay, so the input voltage and the output voltage do not have to be the same.
2:Two relay Independent control:
The receiver has 2 channels, each channel can independently control 1 light or 1-way device.

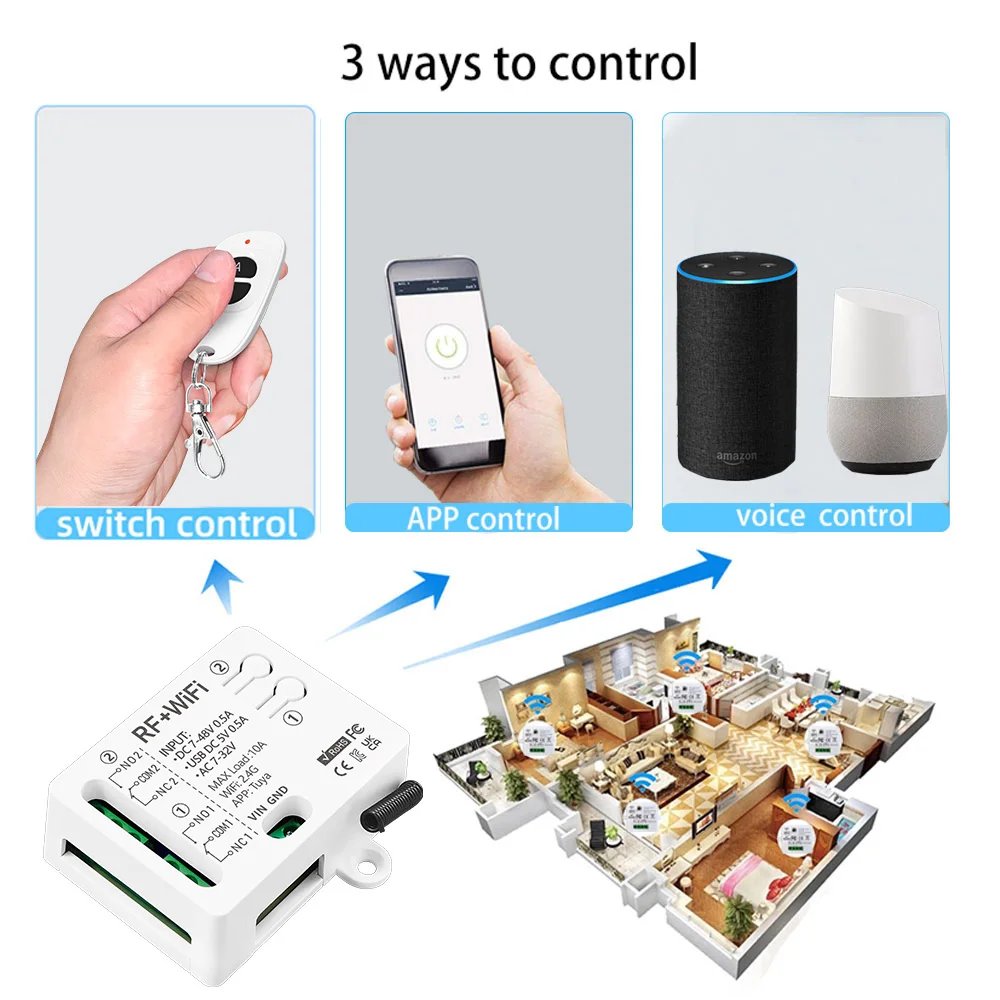

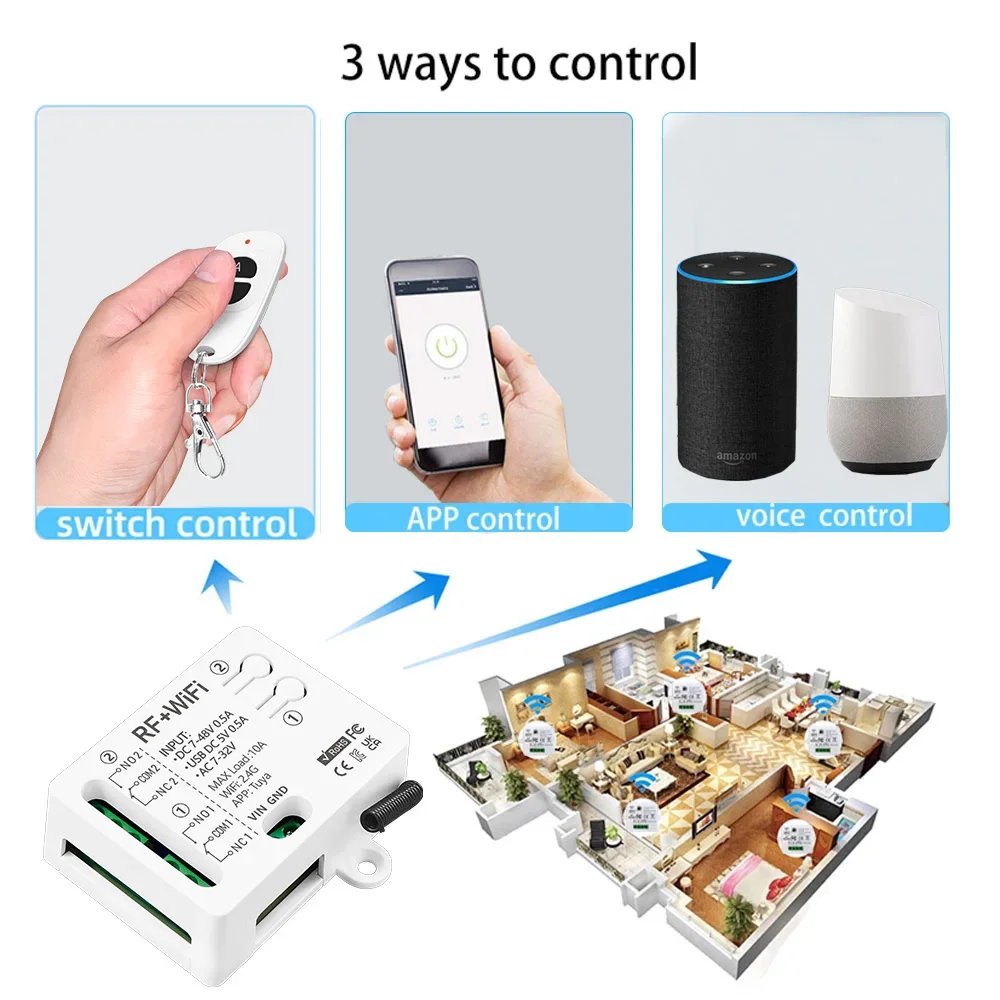

3:Three control methods:
Tuya app control , Wireless remote control , Alexa voice control.
4:Tuya app control funtion:
Cell phone WIFI Remote control function ,Timing control function , Group control funtion:
5:Wireless remotes funtion:

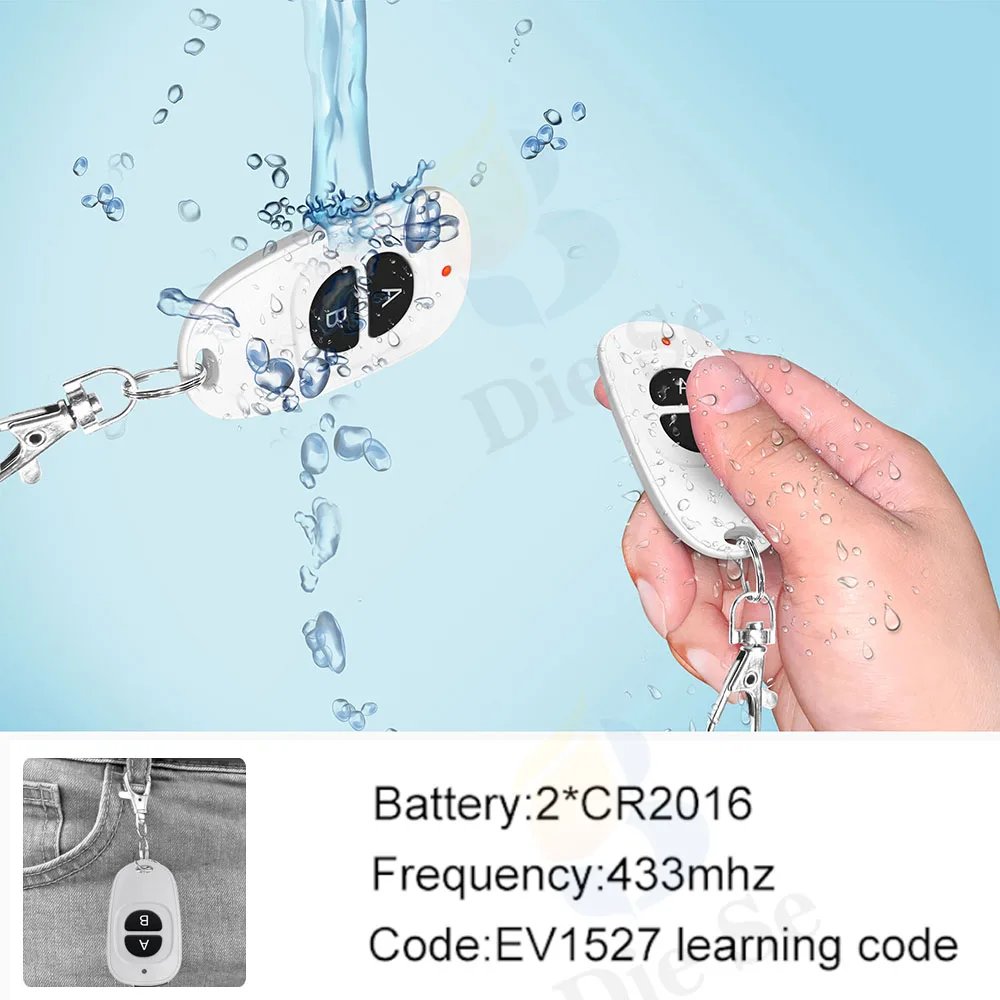

IP66 waterproof, the remote control can still work when dropped into water.
100 meters control distance, even through the wall is still effective.

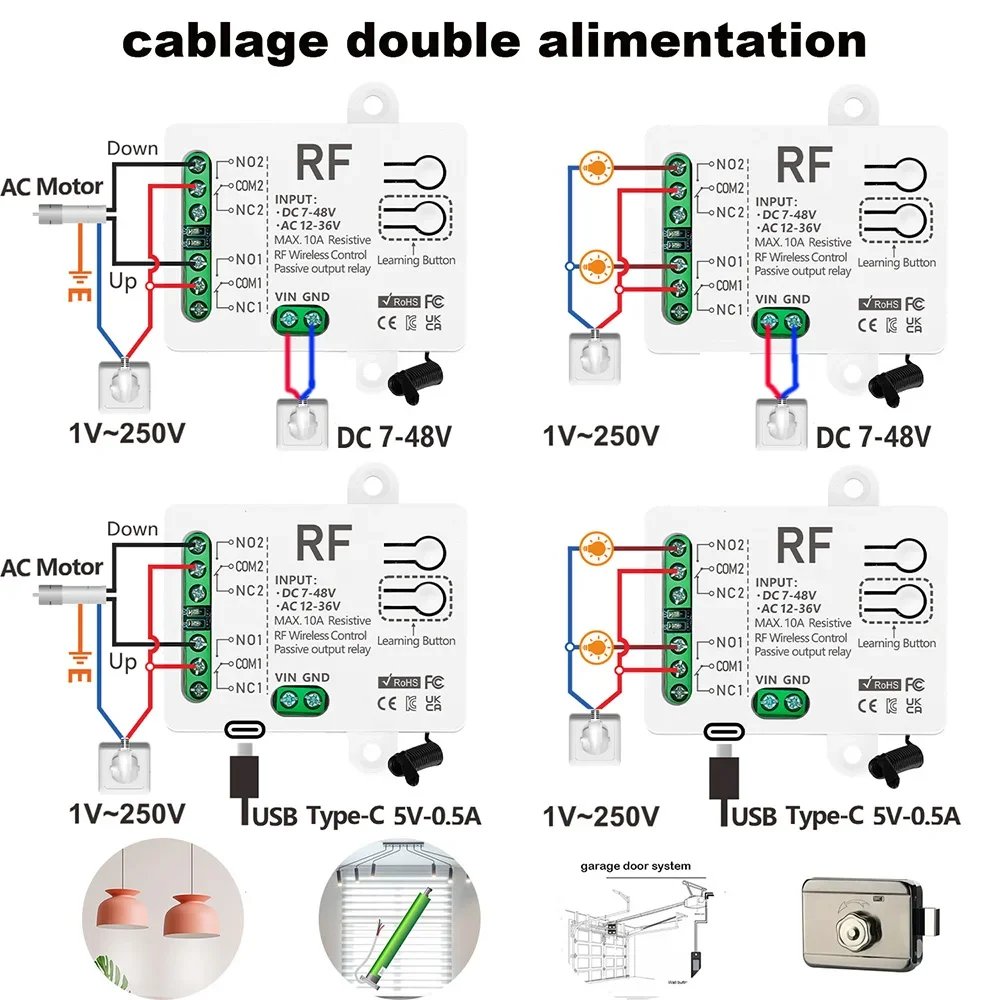

Two Wiring Method:

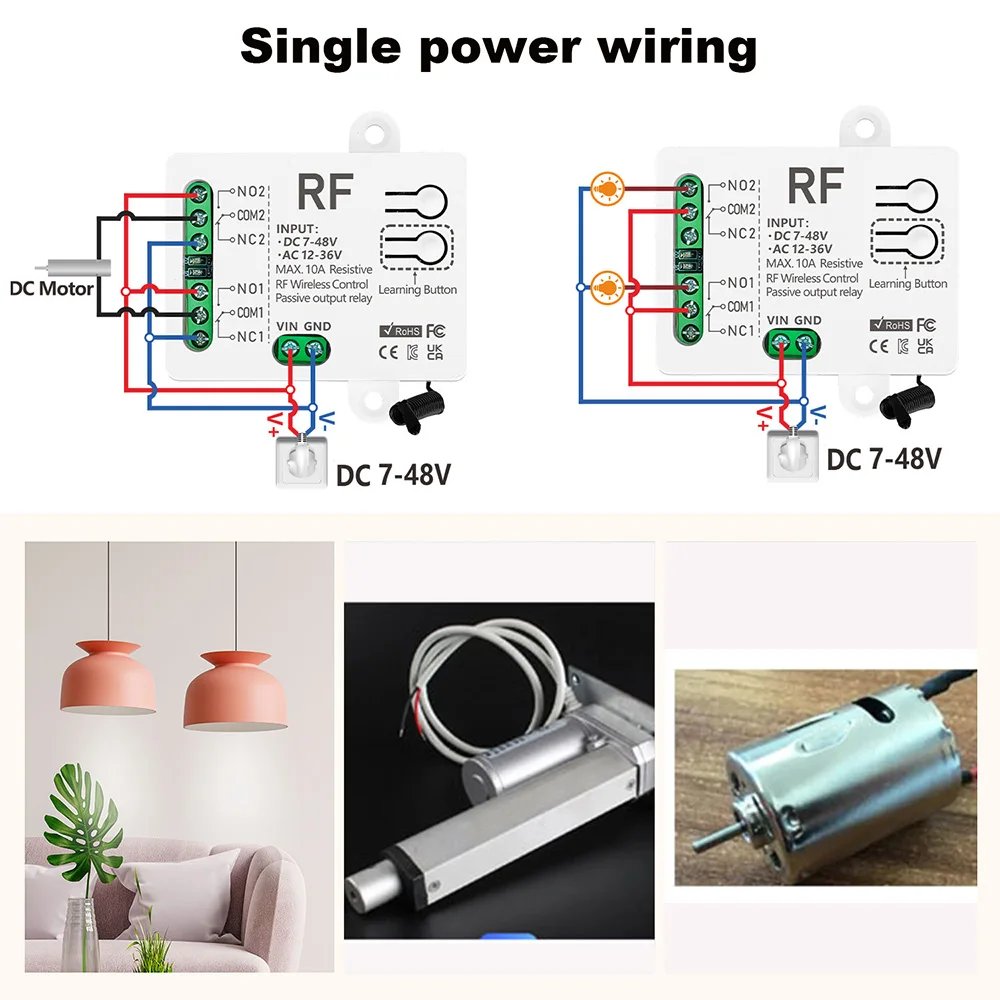

1: Single power supply wiring mode:

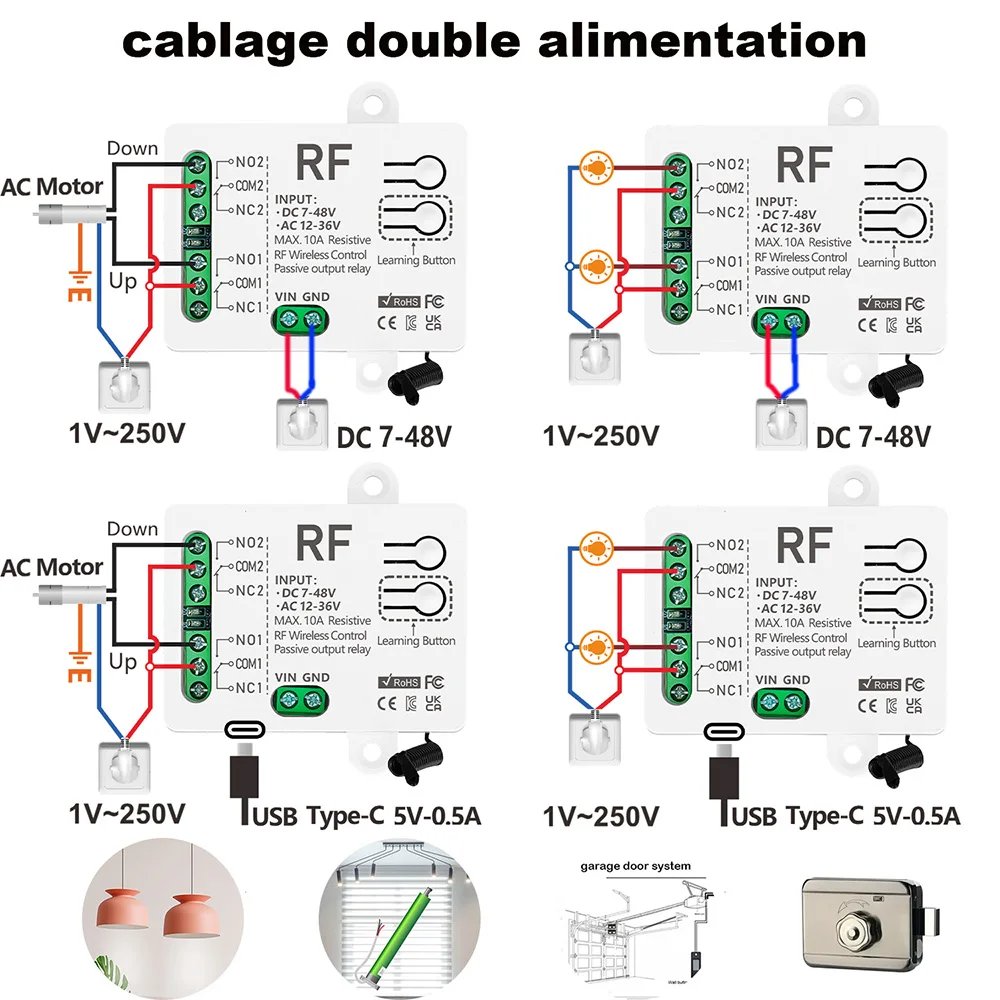

2: Dual power supply wiring mode:

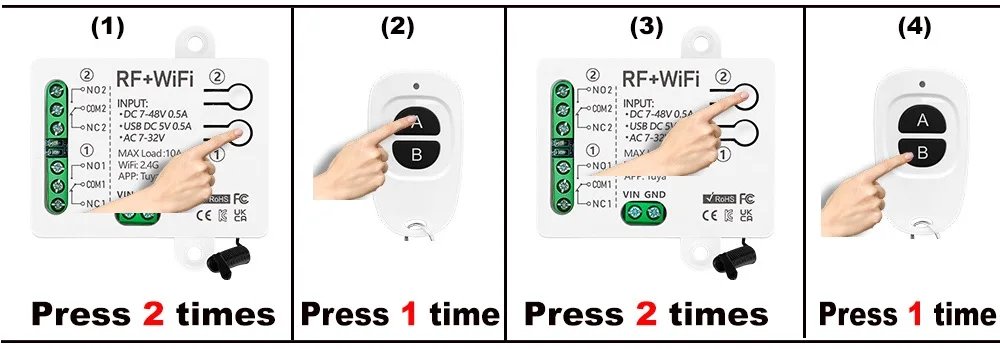

Pair wireless remote control signal:
1:Press the ① learning button (on the receiver) 2 times. Must wait for 1second,
2. Press button on the *A* remote control 1 time.
1:Press the ② learning button (on the receiver) 2 times. Must wait for 1second,
2. Press button on the *B* remote control 1 time. succeed.”
Delete Signal:
Press ① and ②learning button8 times,succeed. (Note: None of the remotes can control the receiver at this time).

Product specifications:

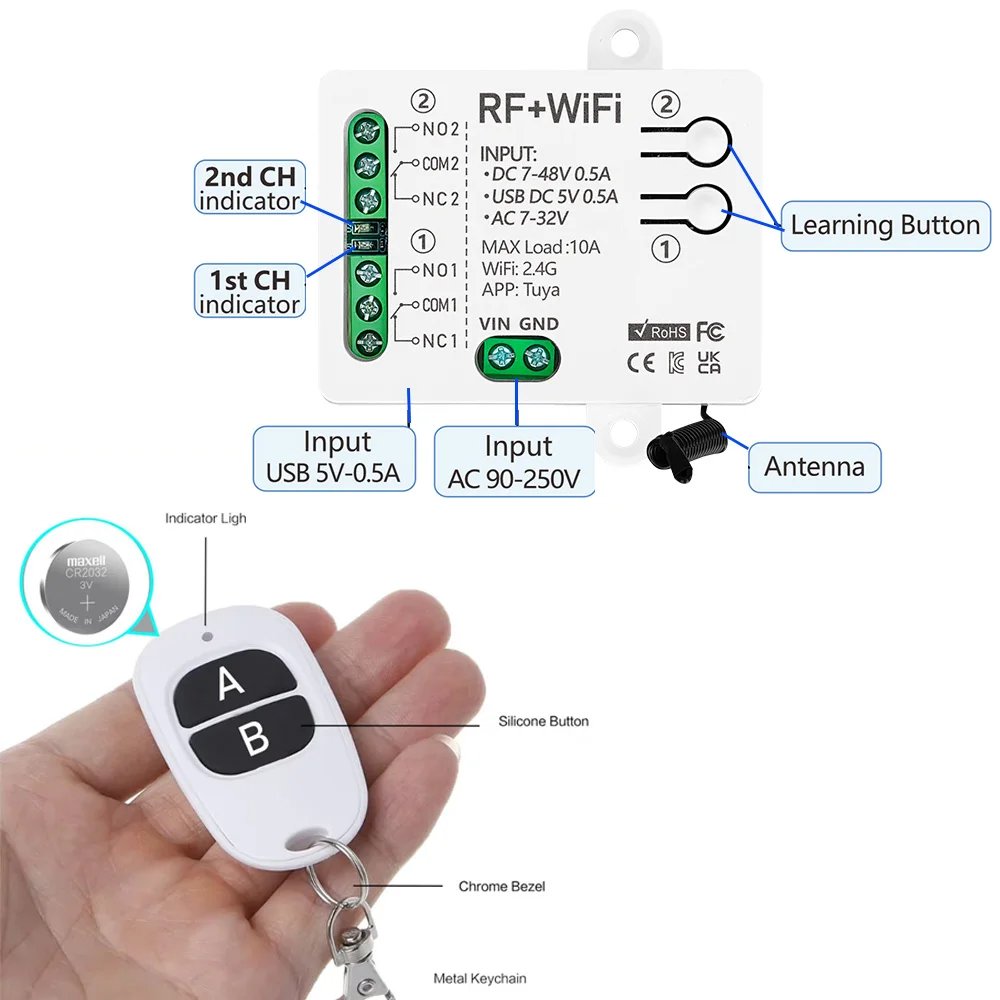

Relay Receiver Board Parameter
-
Working voltage = Input vlotage : DC 7V 12V 24V 36V 48V Or AC12V 24V 36V Or USB DC5V
-
Output vlotage : 1~250V
-
Max current : 10A
-
Max load: 2200W
-
RF frequency : 433MHz
-
Pin : NO / COM / NC
-
Remote control battery : 2*CR2016
-
Remote size : 30mm*55mm
-
Working temperature : -30~+80 Celsius
-
Receiving Sensitivity : >97dbm
-
Amount of storage remote controls : 20 pieces
-
Receiving range : Open space is more than 50 meters
-
Remote operating mode :Momentary Mode/Toggle Mode

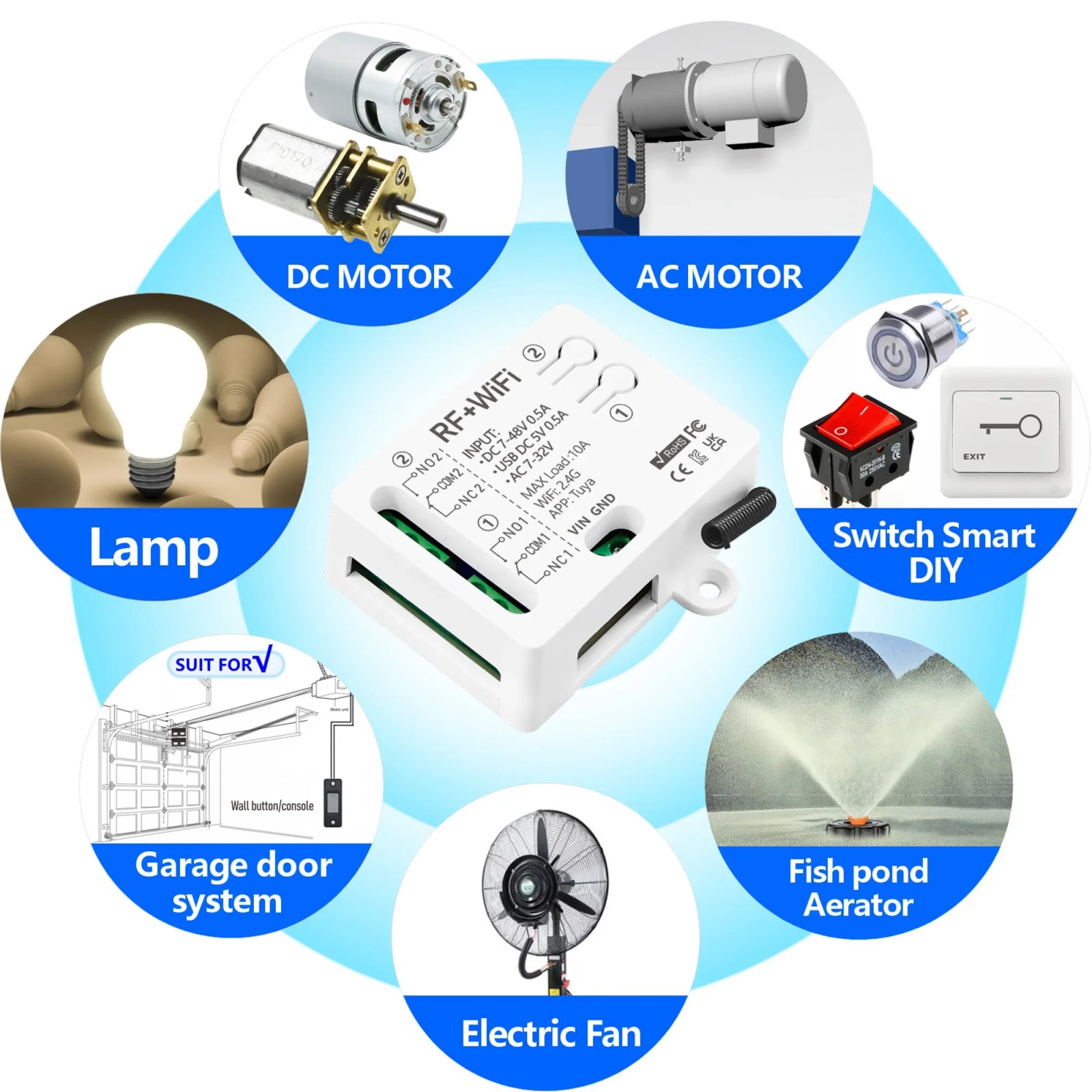

Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control garage door Electric door house door shutter door expansion door gate door road gate
Remote control Electric curtain Water pump Fan Lamp LED light bulb ventilation device Signal transmission
Remote control motor positive and negative rotation motor switch DIY



Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 10 cm |
| Brand Name |
Diese |
| Use |
Switch |
| Origin |
Mainland China |
| High-concerned chemical |
None |
| Wireless Communication |
RF |
| Support APP |
No |
| Certification |
RoHS |
| Frequency |
433 MHz |
| Channel |
2 |
| Package |
Yes |
| Model Number |
DS568 |
| Working Voltage = Input Voltage |
DC 7V 12V 24V 36V 48V Or AC12V 24V 36V Or USB DC5V |
| Output Voltage |
1V-250V |
| Max current |
10A |
| Max load |
2200W |
| RF frequency |
433MHz |
| Remote control battery |
2*CR2016 |
| Pin |
NO / COM / NC |
| Amount of storage remote controls |
20 pieces |
| RF Operating mode |
ASK superheterodyne wireless reception |
| Receiving range |
Open space is more than 50 meters |
| Remote operating mode |
Momentary / Toggle |
| Choice |
yes |
| semi_Choice |
yes |
